M Type SiC Heating element

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                furnaces sic heater, furnaces sic heating element, high temperature sic heater


Applications:	High Temperature Furnaces, Heat Treatment, Sintering, Ceramics, Glass, Metallurgy, Etc.	Maximum Temperature:	1400°C
Shape:	U, W, Spiral, Rod, Straight	Thermal Conductivity:	120 W/mK
Flexural Strength:	400 MPa	Compressive Strength:	2500 MPa
Density:	2.6 G/cm3	Specific Heat:	0.71 J/gK
Purity:	≥ 98%	Type:	M Type
Electrical Resistivity:	1.5x10^-4 Ohm-cm	Material:	SiC
Diameter:	3/6, 4/9, 6/12, 9/18, 12/24, 18/36, 24/48	Length:	150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850

Applications:	High Temperature Furnaces, Heat Treatment, Sintering, Ceramics, Glass, Metallurgy, Etc.
Maximum Temperature:	1400°C
Shape:	U, W, Spiral, Rod, Straight
Thermal Conductivity:	120 W/mK
Flexural Strength:	400 MPa
Compressive Strength:	2500 MPa
Density:	2.6 G/cm3
Specific Heat:	0.71 J/gK
Purity:	≥ 98%
Type:	M Type
Electrical Resistivity:	1.5x10^-4 Ohm-cm
Material:	SiC
Diameter:	3/6, 4/9, 6/12, 9/18, 12/24, 18/36, 24/48
Length:	150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850

Product Description

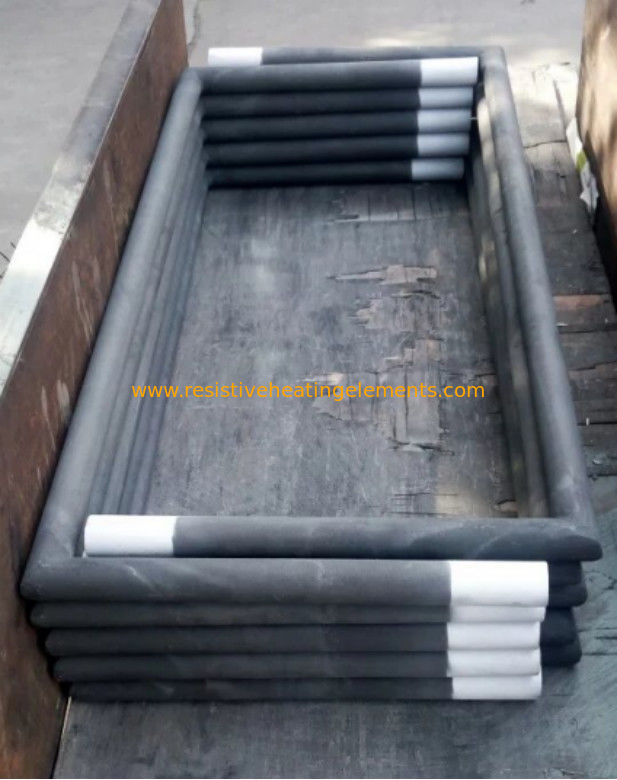

M Type SiC Heating element

Another advantage of the M-type silicon carbide rod is its energy efficiency. It converts electrical energy into heat with high efficiency, minimizing energy wastage. This not only reduces operating costs but also contributes to environmental sustainability by reducing carbon emissions. The rod's excellent insulation properties also help retain heat, further enhancing energy efficiency.

Application	High Temperature Furnace
Watt Density	9 W/cm²
Diameter	12mm
Length	300mm
Cold Zone Length	100mm
Resistance	1.2 Ω
Thermal Conductivity	120 W/m·K
Hot Zone Length	200mm
