G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Features:	High Temperature Resistance, High Thermal Conductivity, Low Coefficient Of Thermal Expansion, Long Service Life	Material:	Silicon Carbide (SiC)
Shape:	Rod, U, W, H, Spiral, Etc.	Resistance:	1.2Ω-10Ω
Maximum Load Capacity:	30-50W/cm²	Thermal Conductivity:	120-200W/m·K
Application:	Industrial And Laboratory Furnaces, Heat Treatment Equipment, Etc.	Density:	2.6g/cm³
Voltage:	220V-480V	Length:	300mm-4000mm
Wattage:	300W-10000W	Maximum Operating Temperature:	1600°C (2912°F)
Diameter:	8mm-55mm

Features:	High Temperature Resistance, High Thermal Conductivity, Low Coefficient Of Thermal Expansion, Long Service Life
Material:	Silicon Carbide (SiC)
Shape:	Rod, U, W, H, Spiral, Etc.
Resistance:	1.2Ω-10Ω
Maximum Load Capacity:	30-50W/cm²
Thermal Conductivity:	120-200W/m·K
Application:	Industrial And Laboratory Furnaces, Heat Treatment Equipment, Etc.
Density:	2.6g/cm³
Voltage:	220V-480V
Length:	300mm-4000mm
Wattage:	300W-10000W
Maximum Operating Temperature:	1600°C (2912°F)
Diameter:	8mm-55mm

Product Description

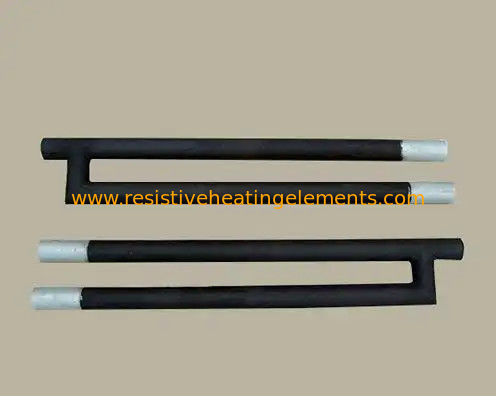

G Type SiC Heating Elements

The gun shaped silicon carbide rod is an improved version of a U-shaped silicon carbide rod, which extends a length of 40-60 at one end of the U-shape to support the rod body. This type of rod is mainly used in the glass bottle industry and is used in conjunction with a five segment rod (double heating element equal diameter rod). The five segment rod is used to heat the glass material channel, and the gun rod is used to heat the material basin.

Material	Silicon Carbide (SiC)
Shape	Rod, U, W, H, Spiral, etc.
Resistance	1.2Ω-10Ω
Maximum Load Capacity	30-50W/cm²
Thermal Conductivity	120-200W/m·K
Application	Industrial and laboratory furnaces, heat treatment equipment, etc.
Density	2.6g/cm³
Voltage	220V-480V
