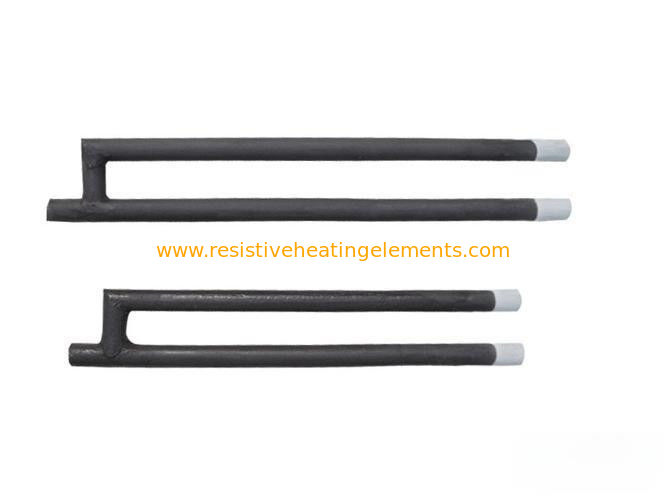

G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Features:	High Temperature Resistance, High Strength, Low Thermal Expansion, Excellent Thermal Shock Resistance, Long Service Life	Flexural Strength:	400-600 MPa
Electrical Resistivity:	1.5-3.0 Ω·cm	Compressive Strength:	2000-2600 MPa
Length:	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, Etc.	Maximum Operating Temperature:	1400°C
Diameter:	8mm, 12mm, 14mm, 16mm, 18mm, 20mm, Etc.	Thermal Expansion Coefficient:	4.0-4.5x10^-6/K
Shape:	U, W, H, I, L, O, D, Etc.	Thermal Conductivity:	120-200 W/m·K
Density:	2.6g/cm³	Surface Load:	Up To 30 W/cm²
Maximum Power:	Up To 18kW	Specific Heat:	0.65 J/g·K

Features:	High Temperature Resistance, High Strength, Low Thermal Expansion, Excellent Thermal Shock Resistance, Long Service Life
Flexural Strength:	400-600 MPa
Electrical Resistivity:	1.5-3.0 Ω·cm
Compressive Strength:	2000-2600 MPa
Length:	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, Etc.
Maximum Operating Temperature:	1400°C
Diameter:	8mm, 12mm, 14mm, 16mm, 18mm, 20mm, Etc.
Thermal Expansion Coefficient:	4.0-4.5x10^-6/K
Shape:	U, W, H, I, L, O, D, Etc.
Thermal Conductivity:	120-200 W/m·K
Density:	2.6g/cm³
Surface Load:	Up To 30 W/cm²
Maximum Power:	Up To 18kW
Specific Heat:	0.65 J/g·K

Product Description

G Type SiC Heating Elements

Characteristics of Silicon Carbon Rod
1. High temperature resistance: Silicon carbon rods can withstand working in high temperature environments, up to 1800 ℃.

2. Good thermal conductivity: Silicon carbon rods have good thermal conductivity, uniform heating, and low heat loss.

3. Corrosion resistance: Silicon carbon rods are not easily corroded by chemicals and have a long service life.

Material	Silicon Carbide (SiC)
Shape	Rod, U, W, H, Spiral, etc.
Resistance	1.2Ω-10Ω
Maximum Load Capacity	30-50W/cm²
Thermal Conductivity	120-200W/m·K
Application	Industrial and laboratory furnaces, heat treatment equipment, etc.
Density	2.6g/cm³
Voltage	220V-480V
