1400C-1500C SiC Heating Element Silicon Carbide Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1500c sic heating element, 1400c sic heating element, 1400c silicon carbide heating elements


Heating Zone:	Single Or Multi	Surface Load:	8-12 W/cm²
Max Temperature:	1600°C	Length:	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm
Flexural Strength:	400-600 MPa	Density:	2.7g/cm³
Thermal Conductivity:	100-120 W/m·K	Diameter:	8mm, 12mm, 14mm, 16mm, 18mm, 20mm
Specific Resistance:	1.5-1.7 Ω·cm	Application:	High Temperature Furnaces, Heat Treatment, Sintering, Etc.
Shape:	Straight	Connection Type:	Straight Or Bent
Operating Temperature:	1400-1500°C	Purity:	≥98%

Heating Zone:	Single Or Multi
Surface Load:	8-12 W/cm²
Max Temperature:	1600°C
Length:	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm
Flexural Strength:	400-600 MPa
Density:	2.7g/cm³
Thermal Conductivity:	100-120 W/m·K
Diameter:	8mm, 12mm, 14mm, 16mm, 18mm, 20mm
Specific Resistance:	1.5-1.7 Ω·cm
Application:	High Temperature Furnaces, Heat Treatment, Sintering, Etc.
Shape:	Straight
Connection Type:	Straight Or Bent
Operating Temperature:	1400-1500°C
Purity:	≥98%

Product Description

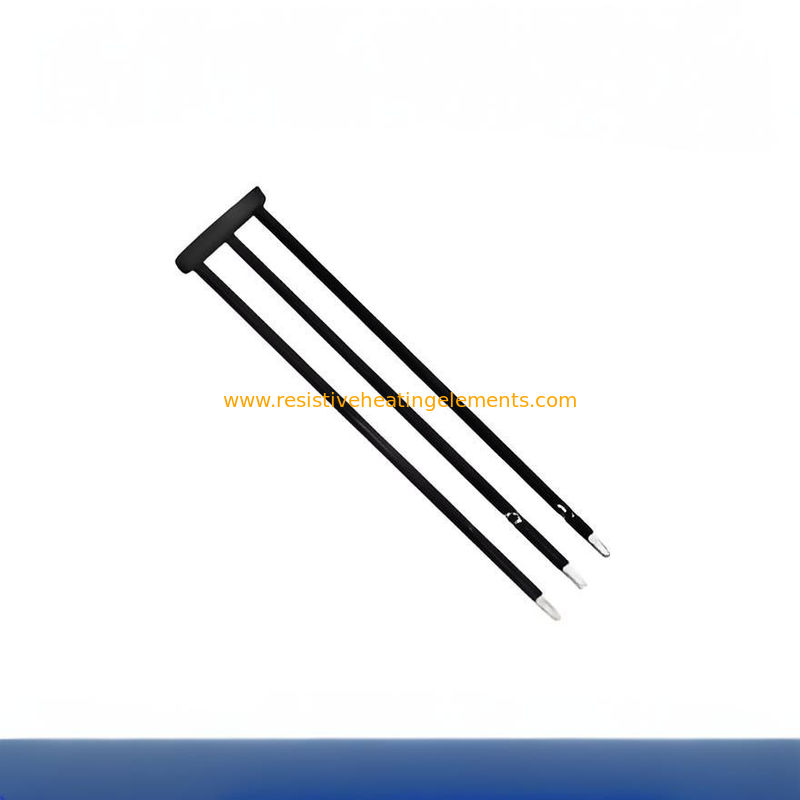

W Type SiC Heating Elements

The diameter range of W-shaped silicon carbide rods is 20-40mm, and the length range is 200-2000mm. Its rated temperature is 1500 ℃, with high mechanical strength, bending strength up to 100-120MPa, strong oxidation resistance, corrosion resistance, and excellent heat shock resistance. Long service life, easy installation and maintenance.

Heating Zone	Single or Multi
Surface Load	8-12 W/cm²
Max Temperature	1600°C
Length	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm
Flexural Strength	400-600 MPa
Density	2.7g/cm³
Thermal Conductivity	100-120 W/m·K
Diameter	8mm, 12mm, 14mm, 16mm, 18mm, 20mm
