G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Hot Zone Length:	150mm	Max Operating Temperature:	1600°C
Heating Zone:	Single	Voltage:	220V
Length:	300mm	Type:	G Type
Diameter:	8mm	Application:	High Temperature Heating
Maximum Power Output:	1.5kW	Cold Zone Length:	150mm
Shape:	Rod	Resistance At 1000°C:	1.2Ω
Density:	2.6g/cm³	Material:	Silicon Carbide

Hot Zone Length:	150mm
Max Operating Temperature:	1600°C
Heating Zone:	Single
Voltage:	220V
Length:	300mm
Type:	G Type
Diameter:	8mm
Application:	High Temperature Heating
Maximum Power Output:	1.5kW
Cold Zone Length:	150mm
Shape:	Rod
Resistance At 1000°C:	1.2Ω
Density:	2.6g/cm³
Material:	Silicon Carbide

Product Description

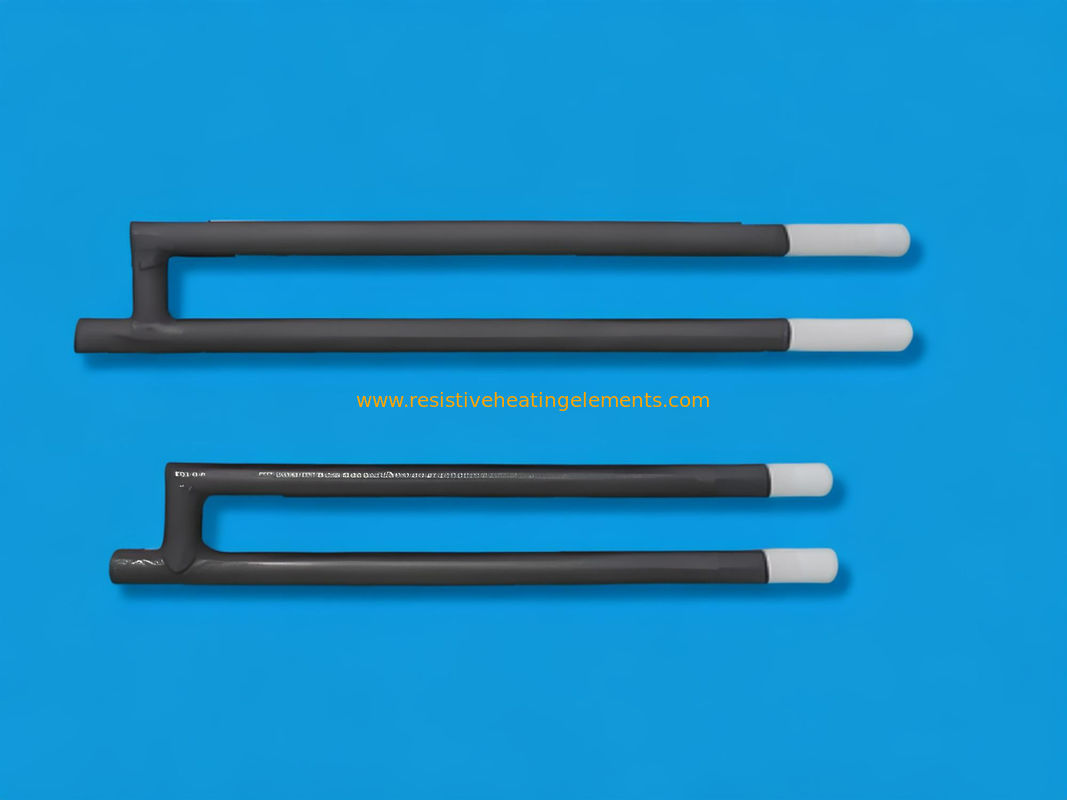

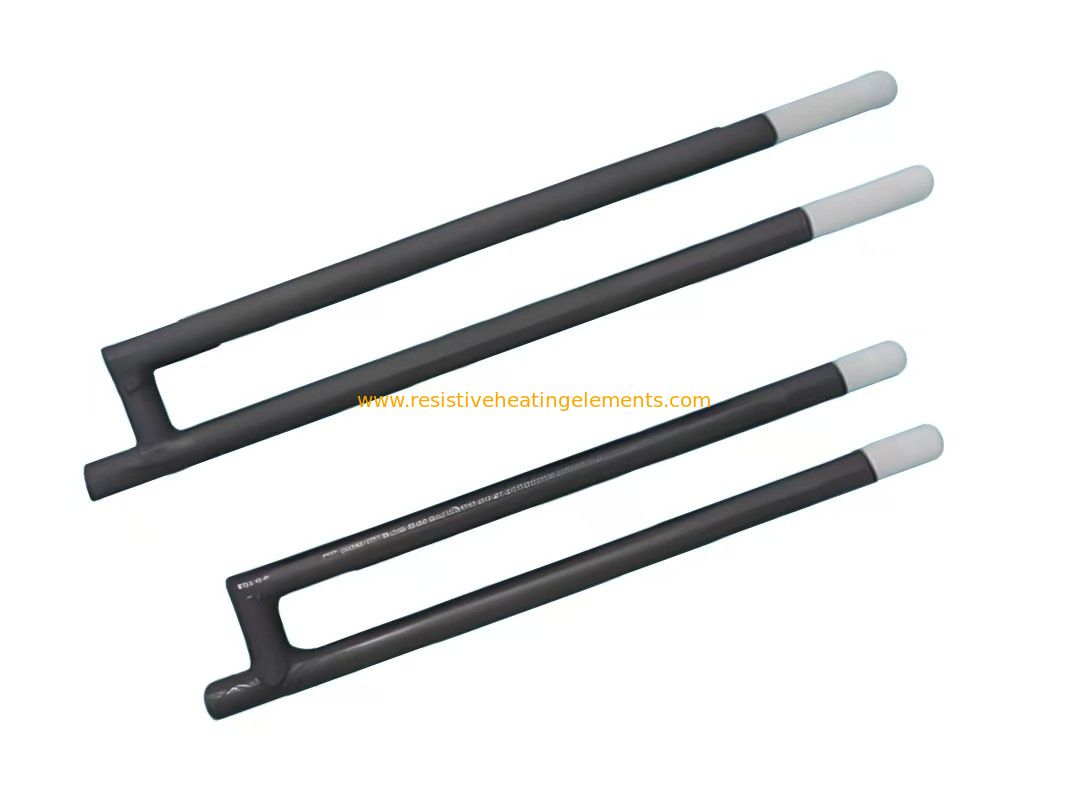

G Type SiC Heating Elements

The silicon carbon rod is a rod-shaped or tubular non-metallic high-temperature electric heating element. It is made from high-purity green hexagonal silicon carbide as the main raw material. After being processed into blanks according to a specific material ratio and sintered through high-temperature silicification and recrystallization at 2200 °C. In an oxidizing atmosphere, its normal operating temperature can reach 1450 °C, and continuous use can last up to 2000 hours. Due to its extremely high operating temperature, the silicon carbon rod exhibits characteristics such as high temperature resistance, oxidation resistance, corrosion resistance, rapid temperature rise, long service life, minimal high-temperature deformation, easy installation and maintenance, and excellent chemical stability. When paired with an automated electronic control system, it can achieve precise constant temperature and automatically adjust temperature according to the curve required by the production process. Heating with silicon carbide rods is not only convenient but also safe and reliable.

Resistance At 1000°C	1.2Ω
Thermal Conductivity	100W/m·K
Maximum Operating Temperature	1600°C
Maximum Power	3.5kW
Diameter	9mm, 12mm, 14mm, 16mm, 18mm, 20mm
Hot Zone Temperature Uniformity	±5°C
