G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Hot Zone Length:	150mm	Max Operating Temperature:	1600°C
Heating Zone:	Single	Voltage:	220V
Length:	300mm	Type:	G Type
Diameter:	8mm	Application:	High Temperature Heating
Maximum Power Output:	1.5kW	Cold Zone Length:	150mm
Shape:	Rod	Resistance At 1000°C:	1.2Ω
Density:	2.6g/cm³	Material:	Silicon Carbide

Hot Zone Length:	150mm
Max Operating Temperature:	1600°C
Heating Zone:	Single
Voltage:	220V
Length:	300mm
Type:	G Type
Diameter:	8mm
Application:	High Temperature Heating
Maximum Power Output:	1.5kW
Cold Zone Length:	150mm
Shape:	Rod
Resistance At 1000°C:	1.2Ω
Density:	2.6g/cm³
Material:	Silicon Carbide

Product Description

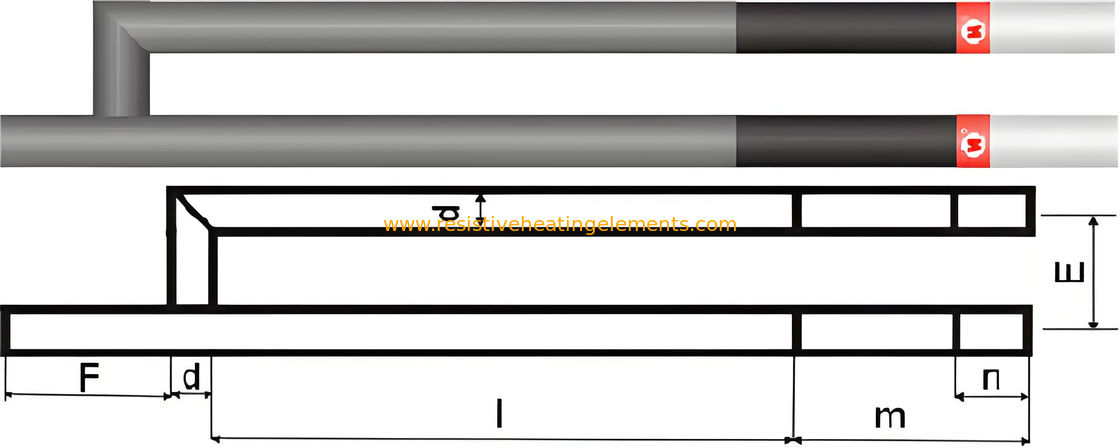

G Type SiC Heating Elements

The silicon carbon rod is a non-metallic high-temperature electric heating element in the form of a rod or tube. It is crafted using high-purity green hexagonal silicon carbide as the primary raw material. Blanks are prepared according to a certain material ratio and then sintered by high-temperature silicification and recrystallization at 2200 °C. In an oxidizing atmosphere, it can operate normally at a temperature up to 1450 °C, and continuous usage can endure for up to 2000 hours. Given its elevated operating temperature, the silicon carbon rod possesses traits like high temperature resistance, oxidation resistance, corrosion resistance, quick temperature increase, long lifespan, small high-temperature deformation, ease of installation and maintenance, and good chemical stability. Matched with an automated electronic control system, it can obtain accurate constant temperature and adjust temperature automatically according to the production process requirements. Heating with silicon carbide rods is convenient, safe, and highly reliable.

Resistance At 1000°C	1.2Ω
Thermal Conductivity	100W/m·K
Maximum Operating Temperature	1600°C
Maximum Power	3.5kW
Diameter	9mm, 12mm, 14mm, 16mm, 18mm, 20mm
Hot Zone Temperature Uniformity	±5°C
