G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Features:	High Temperature Resistance, High Strength, Low Thermal Expansion, Excellent Thermal Shock Resistance, Long Service Life	Flexural Strength:	400-600 MPa
Electrical Resistivity:	1.5-3.0 Ω·cm	Compressive Strength:	2000-2600 MPa
Length:	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, Etc.	Maximum Operating Temperature:	1400°C
Diameter:	8mm, 12mm, 14mm, 16mm, 18mm, 20mm, Etc.	Thermal Expansion Coefficient:	4.0-4.5x10^-6/K
Shape:	U, W, H, I, L, O, D, Etc.	Thermal Conductivity:	120-200 W/m·K
Density:	2.6g/cm³	Surface Load:	Up To 30 W/cm²
Maximum Power:	Up To 18kW	Specific Heat:	0.65 J/g·K

Features:	High Temperature Resistance, High Strength, Low Thermal Expansion, Excellent Thermal Shock Resistance, Long Service Life
Flexural Strength:	400-600 MPa
Electrical Resistivity:	1.5-3.0 Ω·cm
Compressive Strength:	2000-2600 MPa
Length:	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, Etc.
Maximum Operating Temperature:	1400°C
Diameter:	8mm, 12mm, 14mm, 16mm, 18mm, 20mm, Etc.
Thermal Expansion Coefficient:	4.0-4.5x10^-6/K
Shape:	U, W, H, I, L, O, D, Etc.
Thermal Conductivity:	120-200 W/m·K
Density:	2.6g/cm³
Surface Load:	Up To 30 W/cm²
Maximum Power:	Up To 18kW
Specific Heat:	0.65 J/g·K

Product Description

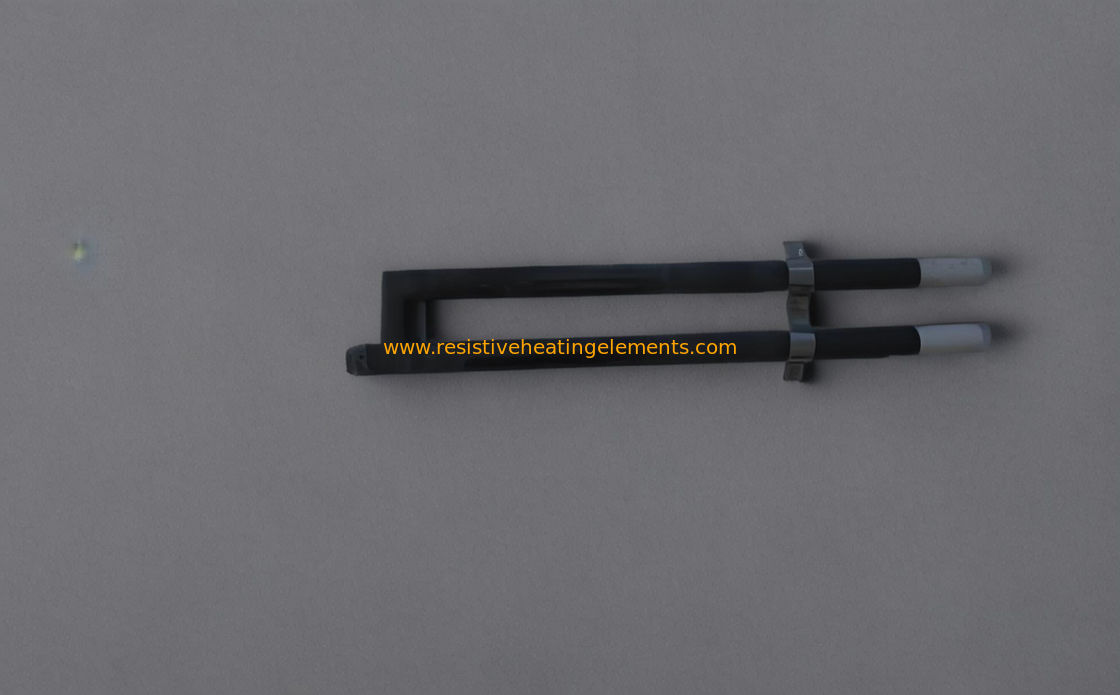

G Type SiC Heating Elements

The silicon carbon rod is a rod-shaped or tubular non-metallic high-temperature electric heating component. It is manufactured with high-purity green hexagonal silicon carbide as the main material. After being processed into blanks in accordance with a specific material ratio and sintered through high-temperature silicification and recrystallization at 2200 °C. In an oxidizing environment, its normal operating temperature can reach 1450 °C, and continuous use can last up to 2000 hours. Due to its high operating temperature, the silicon carbon rod shows characteristics including high temperature resistance, oxidation resistance, corrosion resistance, fast temperature rise, long service life, small high-temperature deformation, easy installation and maintenance, and stable chemical properties. Paired with an automated electronic control system, it can achieve precise constant temperature and adjust temperature automatically according to the curve needed by the production process. Heating with silicon carbide rods is convenient, safe, and dependable.

Material	Silicon Carbide (SiC)
Shape	Rod, U, W, H, Spiral, etc.
Resistance	1.2Ω-10Ω
Maximum Load Capacity	30-50W/cm²
Thermal Conductivity	120-200W/m·K
Application	Industrial and laboratory furnaces, heat treatment equipment, etc.
Density	2.6g/cm³
Voltage	220V-480V
