G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Maximum Operating Temperature:	1600°C	Electrical Resistivity:	1.5 X 10^-4 Ω·m
Hot Zone Length:	300-1500 Mm	Diameter:	12-54 Mm
Applications:	High Temperature Furnaces, Heat Treatment Processes	Heating Zone Length:	100-200 Mm
Surface Load:	5-7 W/cm²	Terminal Connector:	Ceramic Terminal Block
Thermal Conductivity:	120 W/mK	Material:	Silicon Carbide
Cold End Length:	200-600 Mm	Shape:	G Type
Density:	2.7 G/cm³	Maximum Watt Density:	10 W/cm²

Maximum Operating Temperature:	1600°C
Electrical Resistivity:	1.5 X 10^-4 Ω·m
Hot Zone Length:	300-1500 Mm
Diameter:	12-54 Mm
Applications:	High Temperature Furnaces, Heat Treatment Processes
Heating Zone Length:	100-200 Mm
Surface Load:	5-7 W/cm²
Terminal Connector:	Ceramic Terminal Block
Thermal Conductivity:	120 W/mK
Material:	Silicon Carbide
Cold End Length:	200-600 Mm
Shape:	G Type
Density:	2.7 G/cm³
Maximum Watt Density:	10 W/cm²

Product Description

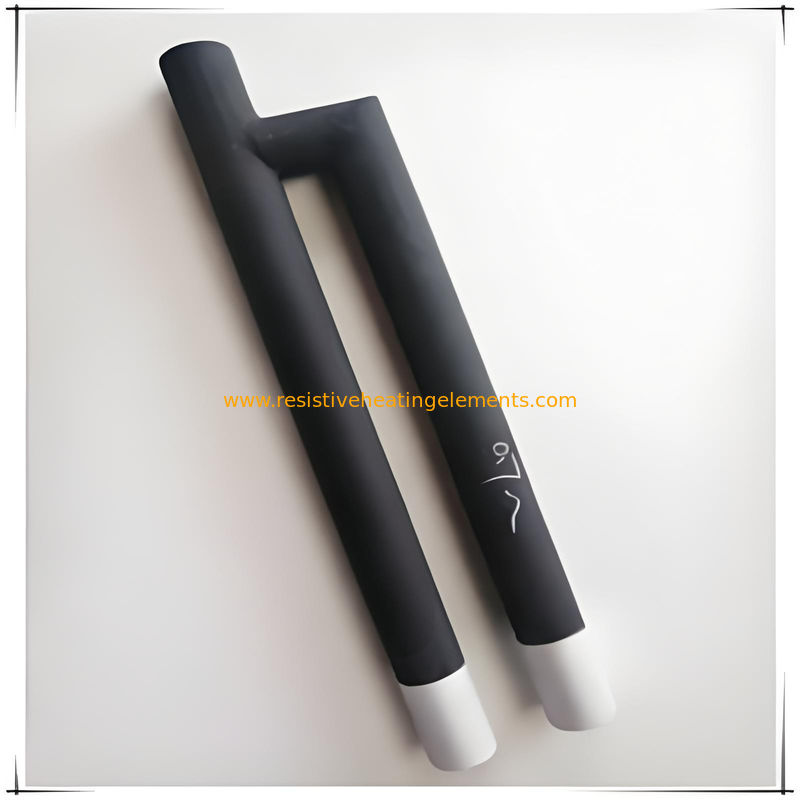

G Type SiC Heating Elements

The silicon carbon rod is a non-metallic high-temperature electric heating element in rod or tube shape. It is made from high-purity green hexagonal silicon carbide as the main raw material. Through processing into blanks according to a certain material ratio and sintering by high-temperature silicification and recrystallization at 2200 °C. In an oxidizing atmosphere, it can operate normally at a temperature as high as 1450 °C, and continuous use can last for up to 2000 hours. Because of its high operating temperature, the silicon carbon rod has the features of high temperature resistance, oxidation resistance, corrosion resistance, rapid temperature rise, long service life, little high-temperature deformation, easy installation and maintenance, and good chemical stability. When combined with an automated electronic control system, it can obtain accurate constant temperature and automatically adjust temperature according to the production process requirements. Heating with silicon carbide rods is convenient, safe, and reliable.

Shape	Tubular
Diameter	12mm
Resistance	1.28Ω
Hot Zone Length	200mm
Wattage	1500W
Voltage	220V
Cold End Length	100mm
Length	300mm
