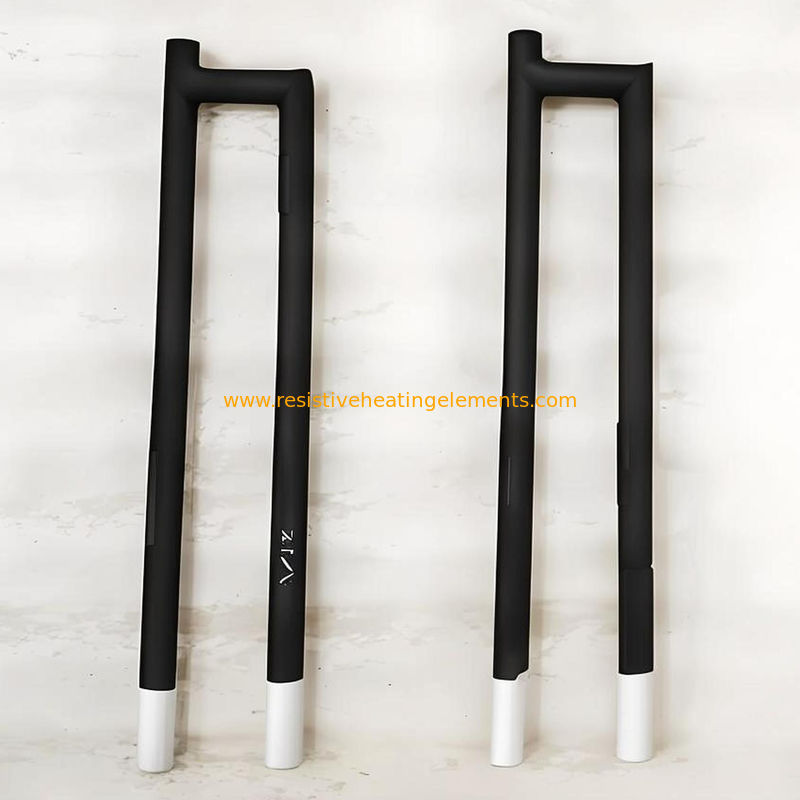

G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Length:	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm	Resistance At 1000°C:	1.2Ω
Thermal Conductivity:	100W/m·K	Maximum Operating Temperature:	1600°C
Maximum Power:	3.5kW	Diameter:	9mm, 12mm, 14mm, 16mm, 18mm, 20mm
Cold Zone Length:	50mm, 100mm, 150mm, 200mm, 250mm, 300mm	Hot Zone Temperature Uniformity:	±5°C
Material:	Silicon Carbide	Density:	2.6g/cm³
Thermal Expansion Coefficient:	4.5×10-6/°C	Shape:	G Type
Maximum Bending Strength:	160MPa	Heating Zone Length:	150mm, 200mm, 250mm, 300mm, 350mm, 400mm

Length:	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm
Resistance At 1000°C:	1.2Ω
Thermal Conductivity:	100W/m·K
Maximum Operating Temperature:	1600°C
Maximum Power:	3.5kW
Diameter:	9mm, 12mm, 14mm, 16mm, 18mm, 20mm
Cold Zone Length:	50mm, 100mm, 150mm, 200mm, 250mm, 300mm
Hot Zone Temperature Uniformity:	±5°C
Material:	Silicon Carbide
Density:	2.6g/cm³
Thermal Expansion Coefficient:	4.5×10-6/°C
Shape:	G Type
Maximum Bending Strength:	160MPa
Heating Zone Length:	150mm, 200mm, 250mm, 300mm, 350mm, 400mm

Product Description

G Type SiC Heating Elements

The silicon carbon rod is a rod-like or tubular non-metallic high-temperature electric heating element. It is produced using high-purity green hexagonal silicon carbide as the main raw material. After being processed into blanks according to a specific material ratio and sintered by high-temperature silicification and recrystallization at 2200 °C. In an oxidizing atmosphere, its normal operating temperature can reach 1450 °C, and continuous usage can last up to 2000 hours. Due to its high operating temperature, the silicon carbon rod displays characteristics such as resistance to high temperatures, oxidation resistance, corrosion resistance, quick temperature increase, long service life, small high-temperature deformation, ease of installation and maintenance, and stable chemical nature. Paired with an automated electronic control system, it can achieve precise constant temperature and adjust temperature automatically according to the curve required by the production process. Heating with silicon carbide rods is convenient, safe, and trustworthy.

Resistance At 1000°C	1.2Ω
Thermal Conductivity	100W/m·K
Maximum Operating Temperature	1600°C
Maximum Power	3.5kW
Diameter	9mm, 12mm, 14mm, 16mm, 18mm, 20mm
Hot Zone Temperature Uniformity	±5°C
