G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Shape:	Tubular	Diameter:	12mm
Resistance:	1.28Ω	Hot Zone Length:	200mm
Wattage:	1500W	Voltage:	220V
Cold End Length:	100mm	Length:	300mm
Thermal Conductivity:	120W/m·K	Maximum Bending Strength:	600MPa
Type:	G Type	Max Temperature:	1600°C
Density:	2.7g/cm³	Material:	SiC
Heating Elements:	Heating Elements

Shape:	Tubular
Diameter:	12mm
Resistance:	1.28Ω
Hot Zone Length:	200mm
Wattage:	1500W
Voltage:	220V
Cold End Length:	100mm
Length:	300mm
Thermal Conductivity:	120W/m·K
Maximum Bending Strength:	600MPa
Type:	G Type
Max Temperature:	1600°C
Density:	2.7g/cm³
Material:	SiC
Heating Elements:	Heating Elements

Product Description

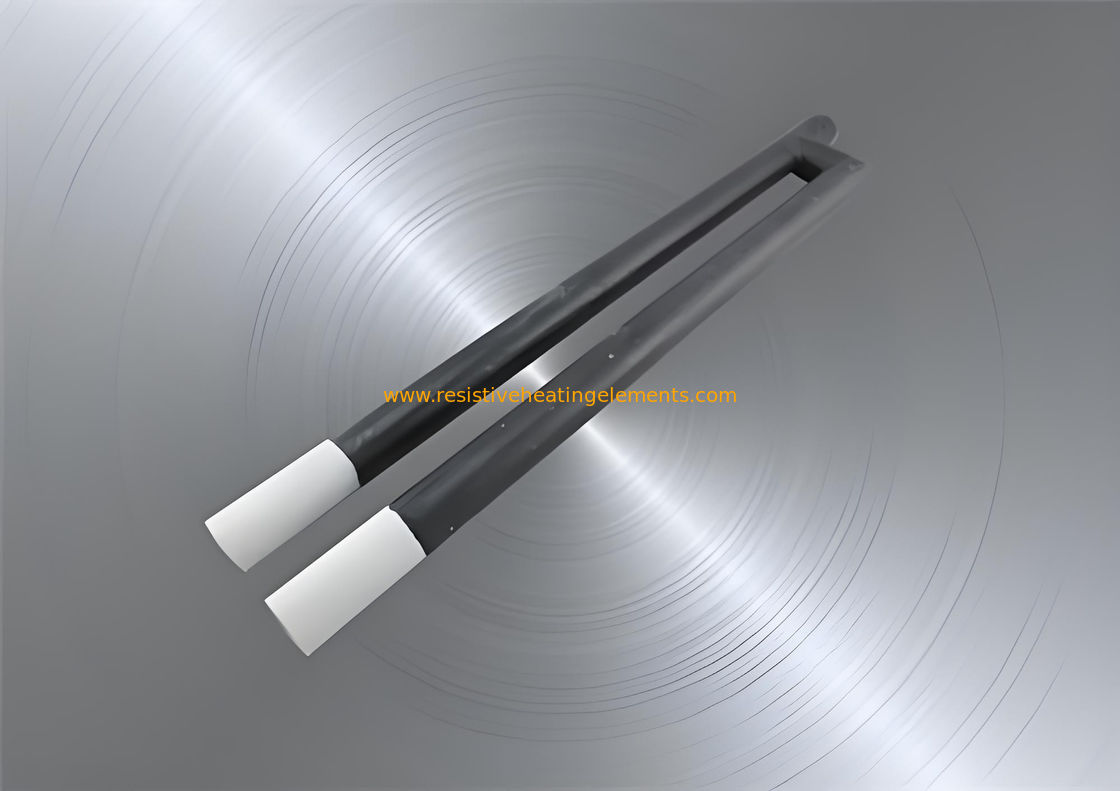

G Type SiC Heating Elements

The silicon carbon rod is a non-metallic high-temperature electric heating element in the form of a rod or tube. It is made with high-purity green hexagonal silicon carbide as the main raw material. After being processed into blanks following a certain material ratio and sintered through high-temperature silicification and recrystallization at 2200 °C. In an oxidizing environment, its normal operating temperature can reach 1450 °C, and continuous use can last up to 2000 hours. Due to its high operating temperature, the silicon carbon rod has properties like high temperature resistance, oxidation resistance, corrosion resistance, fast temperature rise, long service life, small high-temperature deformation, easy installation and maintenance, and good chemical stability. When matched with an automated electronic control system, it can obtain accurate constant temperature and adjust temperature automatically according to the production process needs. Heating with silicon carbide rods is convenient, safe, and reliable.

Shape	Tubular
Diameter	12mm
Resistance	1.28Ω
Hot Zone Length	200mm
Wattage	1500W
Voltage	220V
Cold End Length	100mm
Length	300mm
