G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Features:	High Temperature Resistance, High Thermal Conductivity, Low Coefficient Of Thermal Expansion, Long Service Life	Material:	Silicon Carbide (SiC)
Shape:	Rod, U, W, H, Spiral, Etc.	Resistance:	1.2Ω-10Ω
Maximum Load Capacity:	30-50W/cm²	Thermal Conductivity:	120-200W/m·K
Application:	Industrial And Laboratory Furnaces, Heat Treatment Equipment, Etc.	Density:	2.6g/cm³
Voltage:	220V-480V	Length:	300mm-4000mm
Wattage:	300W-10000W	Maximum Operating Temperature:	1600°C (2912°F)
Diameter:	8mm-55mm

Features:	High Temperature Resistance, High Thermal Conductivity, Low Coefficient Of Thermal Expansion, Long Service Life
Material:	Silicon Carbide (SiC)
Shape:	Rod, U, W, H, Spiral, Etc.
Resistance:	1.2Ω-10Ω
Maximum Load Capacity:	30-50W/cm²
Thermal Conductivity:	120-200W/m·K
Application:	Industrial And Laboratory Furnaces, Heat Treatment Equipment, Etc.
Density:	2.6g/cm³
Voltage:	220V-480V
Length:	300mm-4000mm
Wattage:	300W-10000W
Maximum Operating Temperature:	1600°C (2912°F)
Diameter:	8mm-55mm

Product Description

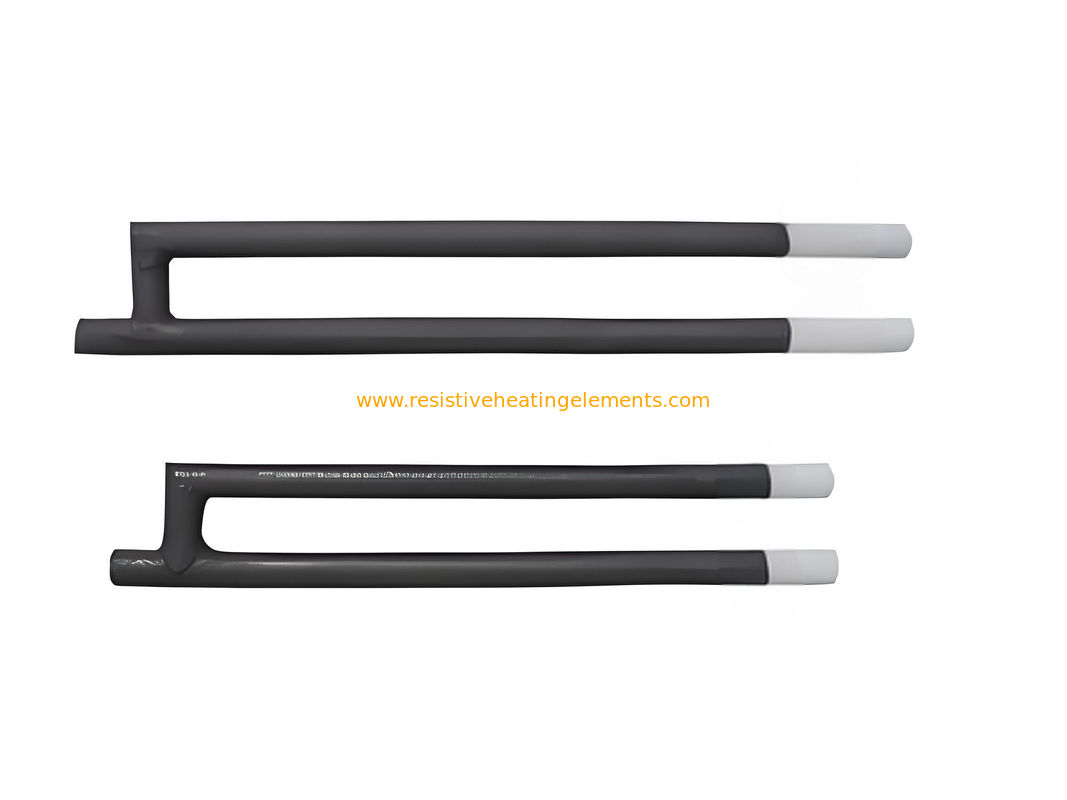

G Type SiC Heating Elements

The silicon carbon rod is a rod-shaped or tubular non-metallic high-temperature electric heating part. It is manufactured from high-purity green hexagonal silicon carbide as the main raw material. After being processed into blanks according to a specific material ratio and sintered by high-temperature silicification and recrystallization at 2200 °C. In an oxidizing atmosphere, its normal operating temperature can reach 1450 °C, and continuous use can last up to 2000 hours. Due to its high operating temperature, the silicon carbon rod shows characteristics of high temperature resistance, oxidation resistance, corrosion resistance, rapid temperature rise, long service life, small high-temperature deformation, easy installation and maintenance, and stable chemical characteristics. Paired with an automated electronic control system, it can achieve precise constant temperature and adjust temperature automatically according to the curve required by the production process. Heating with silicon carbide rods is convenient, safe, and reliable.

Material	Silicon Carbide (SiC)
Shape	Rod, U, W, H, Spiral, etc.
Resistance	1.2Ω-10Ω
Maximum Load Capacity	30-50W/cm²
Thermal Conductivity	120-200W/m·K
Application	Industrial and laboratory furnaces, heat treatment equipment, etc.
Density	2.6g/cm³
Voltage	220V-480V
