G Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                g type sic heating elements, sic moly disilicide heating elements, g type moly disilicide heating elements


Shape:	Tubular	Diameter:	12mm
Resistance:	1.28Ω	Hot Zone Length:	200mm
Wattage:	1500W	Voltage:	220V
Cold End Length:	100mm	Length:	300mm
Thermal Conductivity:	120W/m·K	Maximum Bending Strength:	600MPa
Type:	G Type	Max Temperature:	1600°C
Density:	2.7g/cm³	Material:	SiC
Heating Elements:	Heating Elements

Shape:	Tubular
Diameter:	12mm
Resistance:	1.28Ω
Hot Zone Length:	200mm
Wattage:	1500W
Voltage:	220V
Cold End Length:	100mm
Length:	300mm
Thermal Conductivity:	120W/m·K
Maximum Bending Strength:	600MPa
Type:	G Type
Max Temperature:	1600°C
Density:	2.7g/cm³
Material:	SiC
Heating Elements:	Heating Elements

Product Description

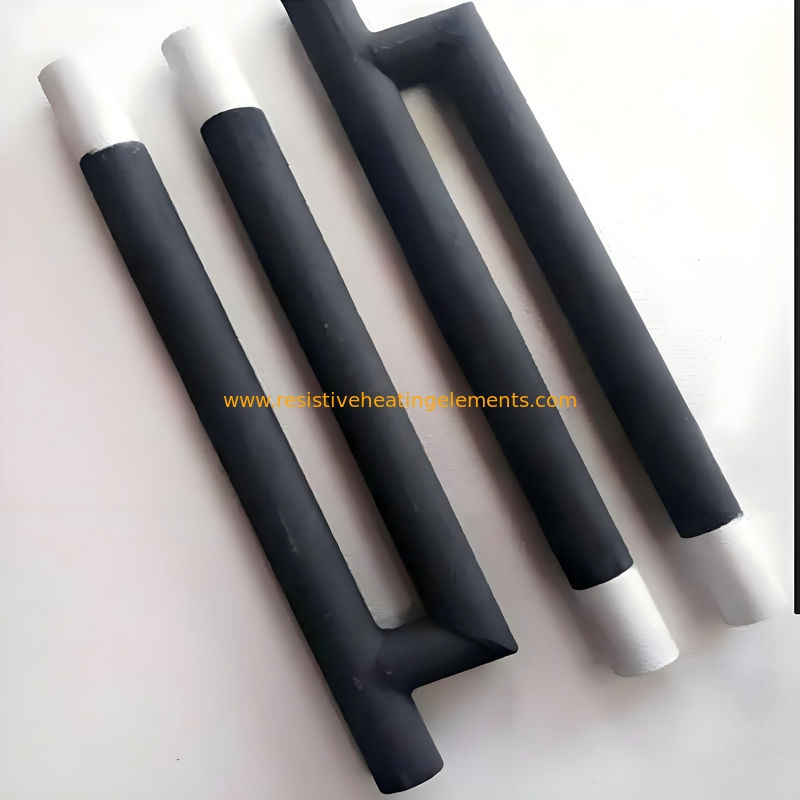

G Type SiC Heating Elements
The silicon carbon rod is a non-metallic high-temperature electric heating element in rod or tube shape. It is made from high-purity green hexagonal silicon carbide as the main raw material. Through processing into blanks according to a certain material ratio and sintering by high-temperature silicification and recrystallization at 2200 °C. In an oxidizing atmosphere, it can operate normally at a temperature of up to 1450 °C, and continuous use can last up to 2000 hours. Due to its high operating temperature, the silicon carbon rod has the qualities of high temperature resistance, oxidation resistance, corrosion resistance, fast temperature rise, long service life, small high-temperature deformation, easy installation and maintenance, and good chemical stability. When combined with an automated electronic control system, it can obtain accurate constant temperature and adjust temperature automatically according to the production process requirements. Heating with silicon carbide rods is convenient, safe, and dependable.
What are the advantages of silicon carbon rods compared to other heating elements?
How to select the appropriate size and power of a silicon carbon rod for a specific application?
Are there any safety precautions to consider when using silicon carbon rods?

Shape	Tubular
Diameter	12mm
Resistance	1.28Ω
Hot Zone Length	200mm
Wattage	1500W
Voltage	220V
Cold End Length	100mm
Length	300mm
