Home > products > SiC Heating Element > 1.5kW SiC Heating Elements 380V 480V Furnace Heating Element 1600C

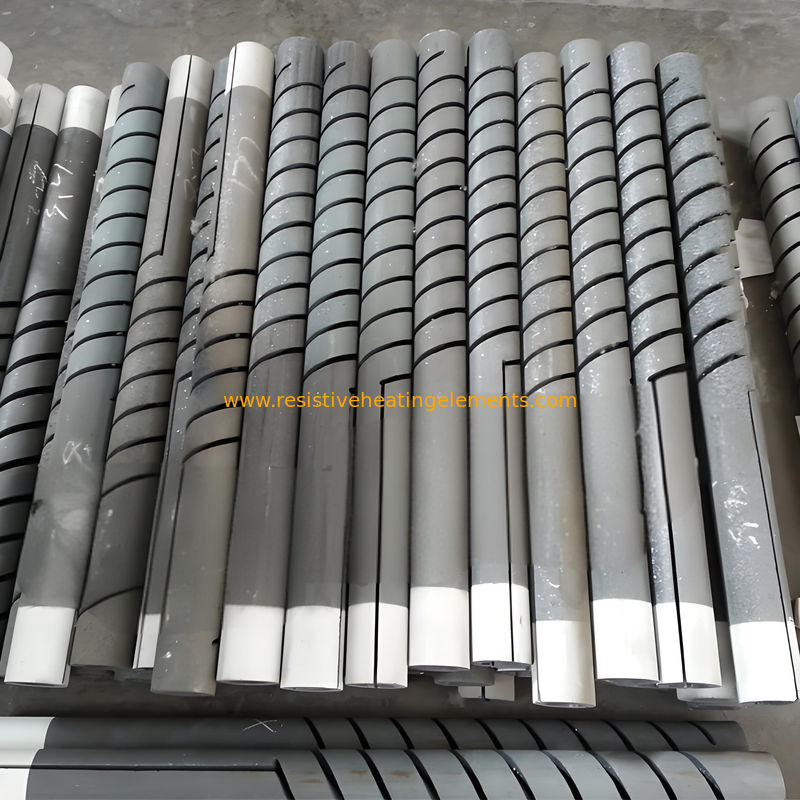

1.5kW SiC Heating Elements 380V 480V Furnace Heating Element 1600C

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5kw sic heating elements, sic heating elements 380v, furnace heating element 1600c


Features:	High Temperature Resistance, Fast Heating, Long Service Life	Cold End Length:	100mm
Length:	300mm	Material:	Silicon Carbide
Outer Diameter:	12mm	Density:	2.6g/cm³
Voltage:	220V	Surface Load:	5W/cm²
Maximum Power Output:	1.5kW	Resistance At 20°C:	1.2Ω
Thermal Conductivity:	120W/mK	Hot Zone Length:	200mm
Shape:	U Shape	Max. Working Temperature:	1600°C

Features:	High Temperature Resistance, Fast Heating, Long Service Life
Cold End Length:	100mm
Length:	300mm
Material:	Silicon Carbide
Outer Diameter:	12mm
Density:	2.6g/cm³
Voltage:	220V
Surface Load:	5W/cm²
Maximum Power Output:	1.5kW
Resistance At 20°C:	1.2Ω
Thermal Conductivity:	120W/mK
Hot Zone Length:	200mm
Shape:	U Shape
Max. Working Temperature:	1600°C

Product Description

SGR Type SiC Heating Elements

To meet the specific needs of different customers, the double-threaded silicon carbide rod can be customized in various ways. The length, diameter, and thread pitch can be adjusted according to the requirements of the application. This allows for a perfect fit in different heating systems and ensures optimal performance.
In addition to dimensional customization, the electrical characteristics of the double-threaded silicon carbide rod can also be tailored. The resistance value can be adjusted to match the power supply and heating requirements of the specific application. This provides flexibility in designing heating systems and allows for efficient use of energy.
Customization options also include surface treatments and coatings. These can be applied to enhance the corrosion resistance, oxidation resistance, or emissivity of the silicon carbide rod. This allows for use in harsh environments or applications that require specific surface properties.

Diameter	8mm, 12mm, 14mm, 18mm
Max. Working Temperature	1600°C
Application	High Temperature Furnaces, Heat Treatment Furnaces
Thermal Conductivity	120W/m·K
Voltage	220V, 240V, 380V, 480V
Resistance	1.2Ω, 1.5Ω, 1.8Ω, 2.0Ω
