1600 Degree SiC Heater 2.5kW 240V Silicon Carbide Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                sic heater 2.5kw, 240v silicon carbide heating elements, 1600 degree sic heater


Length:	300mm	Density:	2.7g/cm³
Hot Zone Length:	200mm	Maximum Operating Temperature:	1600°C
Maximum Bending Stress:	55MPa	Diameter:	8mm
Maximum Current:	10.4A	Shape:	U Shape
Resistance At 1000°C:	1.2Ω	Cold Zone Length:	100mm
Maximum Power:	2.5kW	Thermal Conductivity:	120W/m·K
Maximum Surface Load:	6.5W/cm²	Maximum Voltage:	240V

Length:	300mm
Density:	2.7g/cm³
Hot Zone Length:	200mm
Maximum Operating Temperature:	1600°C
Maximum Bending Stress:	55MPa
Diameter:	8mm
Maximum Current:	10.4A
Shape:	U Shape
Resistance At 1000°C:	1.2Ω
Cold Zone Length:	100mm
Maximum Power:	2.5kW
Thermal Conductivity:	120W/m·K
Maximum Surface Load:	6.5W/cm²
Maximum Voltage:	240V

Product Description

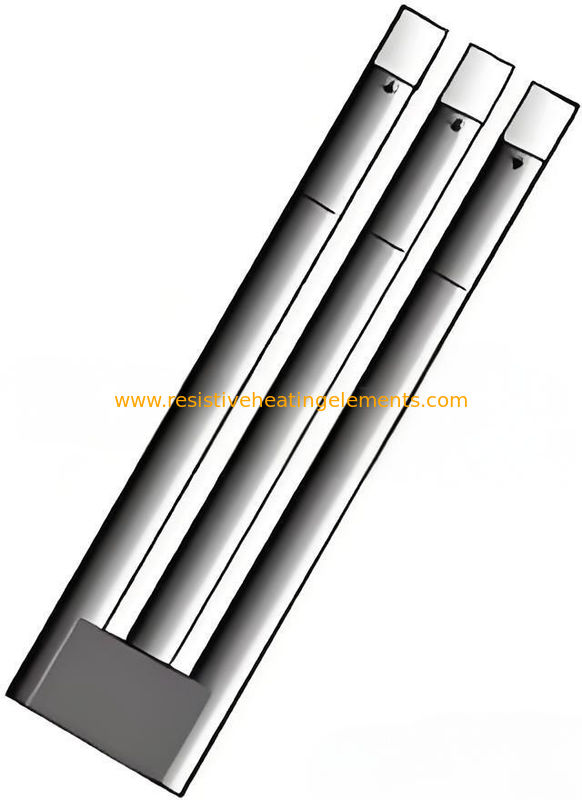

W Type SiC Heating Elements
The "W-shaped silicon carbide rod" is a crucial component with specific functions and characteristics. It consists of two main parts: the heating part and the connecting part. The heating part is of particular significance as it contains three rods arranged in parallel. These rods play a vital role in the heating process. One end of each rod serves as an electrode, which is responsible for conducting electricity to generate heat. The other end of the rods is uniformly and vertically connected on the same side of the connecting part. This design ensures a stable connection and proper heat transfer.
One of the notable characteristics of this silicon carbide rod is the presence of a bolt at the connecting end of the heating part. This bolt provides a secure and reliable means of attachment. On the connecting part, there is a connecting plate. The connecting plate has screw holes at corresponding positions. This allows for a threaded connection between the heating part and the connecting part. The threaded connection offers several advantages. It provides a strong and stable connection, ensuring that the two parts remain firmly attached even under harsh operating conditions. It also allows for easy assembly and disassembly, facilitating maintenance and replacement if necessary.
In conclusion, the W-shaped silicon carbide rod with its specific design and characteristics is a valuable component in various applications where heating is required. Its parallel rods, electrodes, bolted connection, and connecting plate with screw holes all contribute to its functionality and reliability.

Product Type	Heating Elements
Material	Silicon Carbide (SiC)
Shape	W Shape
Features	High Temperature Resistance, High Thermal Conductivity, Long Service Life
Cold End Length	100mm, 150mm, 200mm, 250mm, 300mm
Voltage	220V, 240V, 480V, 600V
