W Type SiC Heating Elements

Product Details

Place of Origin: China

Brand Name: SONGYU

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: WOODEN CASE

Delivery Time: 15 work days

Payment Terms: T/T, Western Union

Supply Ability: Spark Industry (Henan) Co., Ltd.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                w type sic heating elements, sic moly disilicide heating elements, w type moly disilicide heating elements


Heating Zone:	Single Or Multi	Surface Load:	8-12 W/cm²
Max Temperature:	1600°C	Length:	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm
Flexural Strength:	400-600 MPa	Density:	2.7g/cm³
Thermal Conductivity:	100-120 W/m·K	Diameter:	8mm, 12mm, 14mm, 16mm, 18mm, 20mm
Specific Resistance:	1.5-1.7 Ω·cm	Application:	High Temperature Furnaces, Heat Treatment, Sintering, Etc.
Shape:	Straight	Connection Type:	Straight Or Bent
Operating Temperature:	1400-1500°C	Purity:	≥98%

Heating Zone:	Single Or Multi
Surface Load:	8-12 W/cm²
Max Temperature:	1600°C
Length:	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm
Flexural Strength:	400-600 MPa
Density:	2.7g/cm³
Thermal Conductivity:	100-120 W/m·K
Diameter:	8mm, 12mm, 14mm, 16mm, 18mm, 20mm
Specific Resistance:	1.5-1.7 Ω·cm
Application:	High Temperature Furnaces, Heat Treatment, Sintering, Etc.
Shape:	Straight
Connection Type:	Straight Or Bent
Operating Temperature:	1400-1500°C
Purity:	≥98%

Product Description

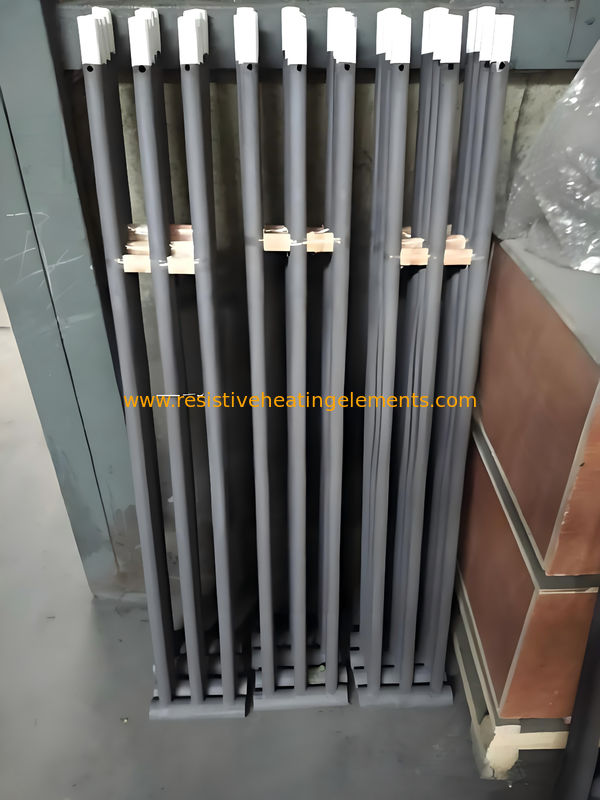

W Type SiC Heating Elements
The W-shaped silicon carbide rod represents an innovative design in the field of heating elements. The combination of the heating part and the connecting part is carefully engineered to meet specific performance requirements. The three parallel rods in the heating part offer increased surface area for heat generation, enhancing the efficiency of the heating process. The electrodes at one end ensure a reliable electrical connection for the flow of current.
The connection between the heating part and the connecting part is crucial for the overall functionality of the rod. The bolt at the connecting end of the heating part and the corresponding screw holes on the connecting plate provide a mechanical connection that is both strong and durable. This design allows for easy installation and removal, making it convenient for maintenance and replacement.
From a materials perspective, silicon carbide is known for its high thermal conductivity and resistance to high temperatures. This makes it an ideal material for heating elements that operate in harsh environments. The W-shaped design may also have advantages in terms of heat distribution and stability.
In terms of applications, this type of silicon carbide rod can be used in a variety of industries, such as metallurgy, ceramics, and glass manufacturing. It can be used in furnaces, kilns, and other heating equipment to provide reliable and efficient heating.

Heating Zone	Single or Multi
Surface Load	8-12 W/cm²
Max Temperature	1600°C
Length	300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm
Flexural Strength	400-600 MPa
Density	2.7g/cm³
Thermal Conductivity	100-120 W/m·K
Diameter	8mm, 12mm, 14mm, 16mm, 18mm, 20mm
